Product Detail

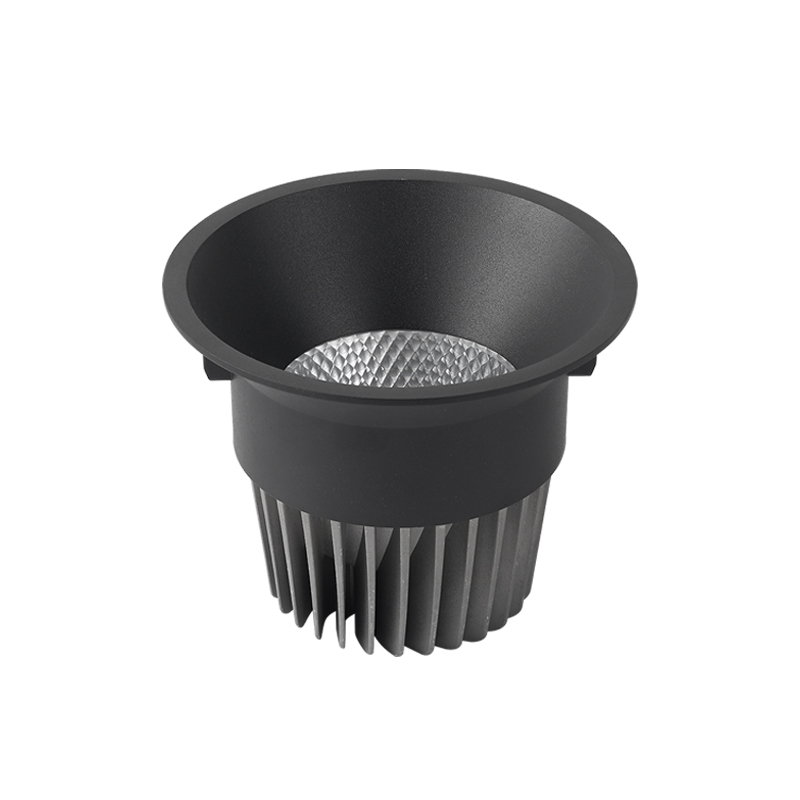

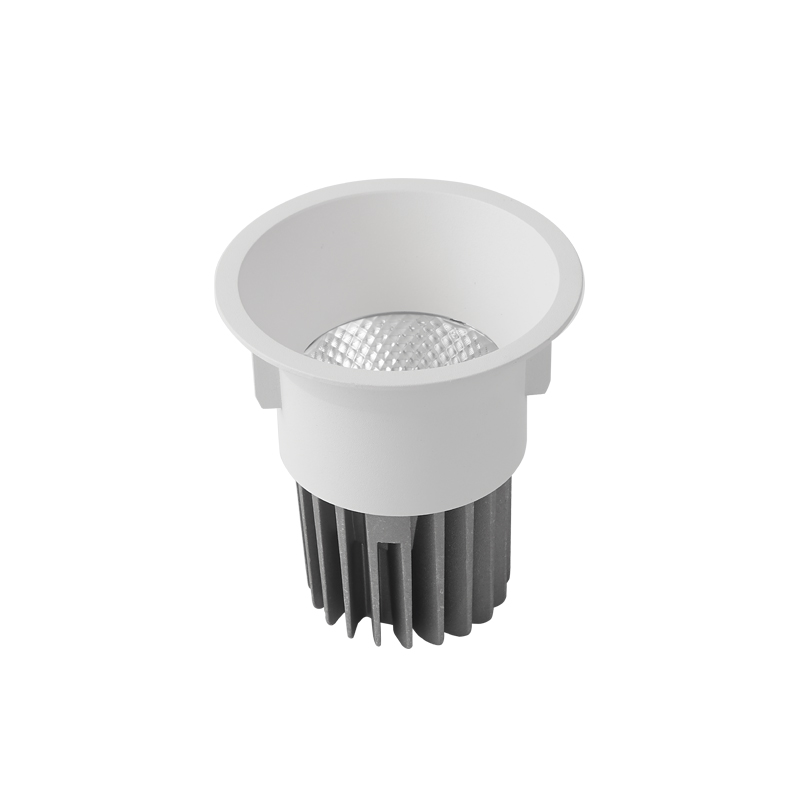

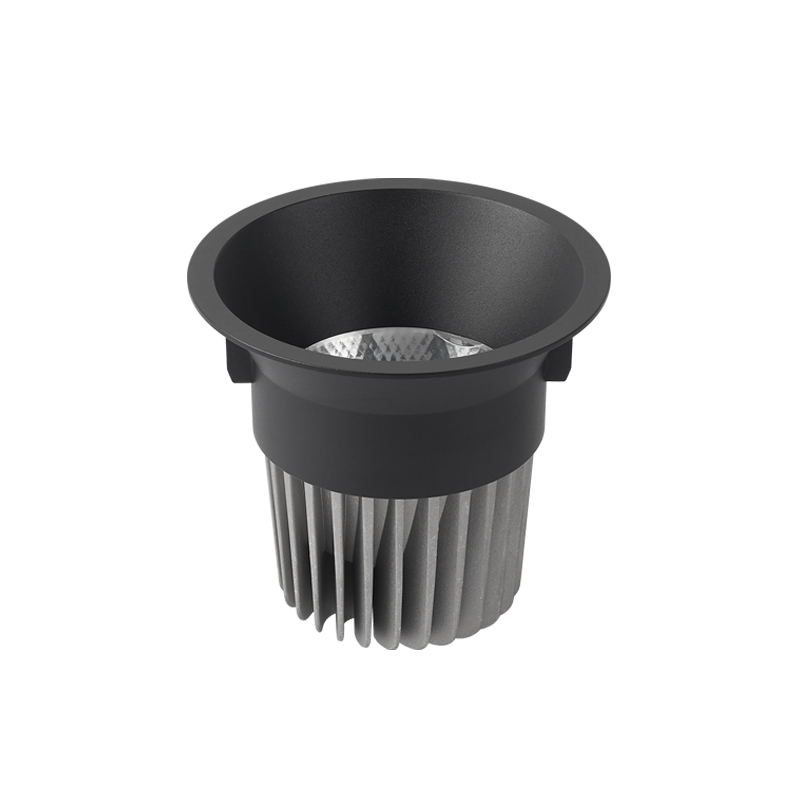

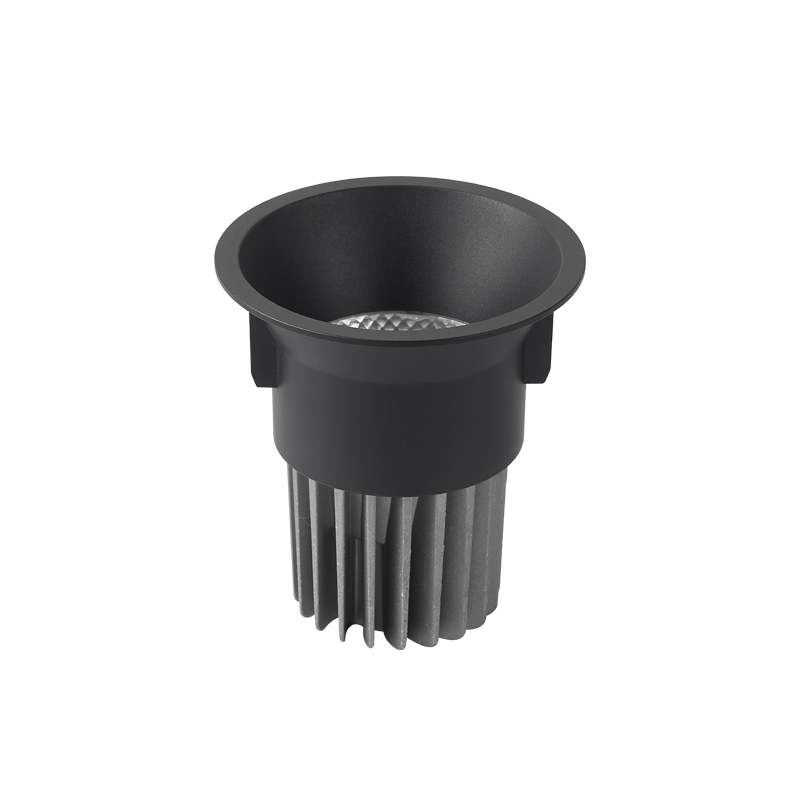

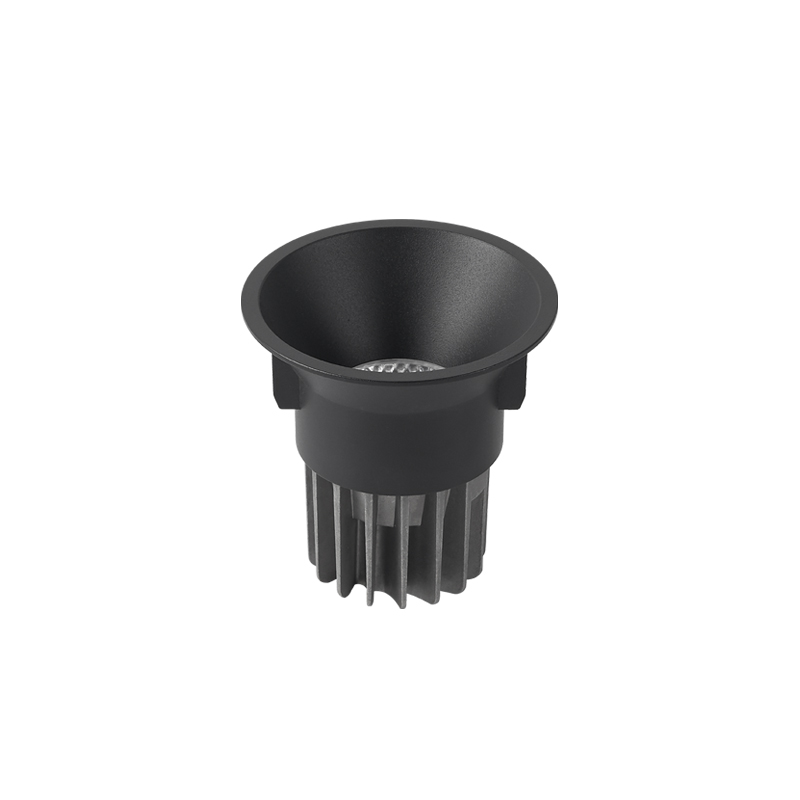

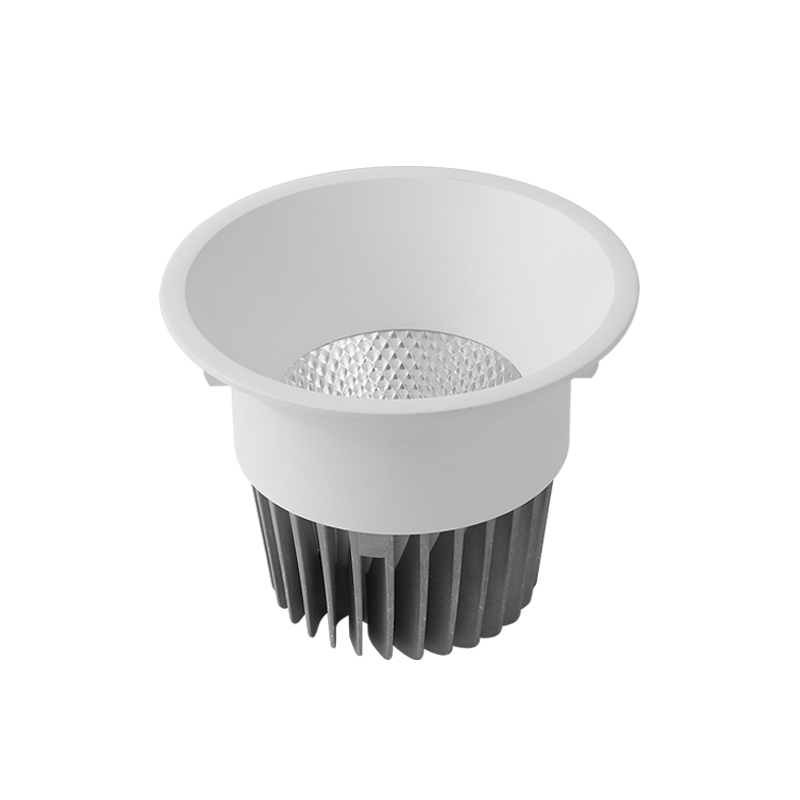

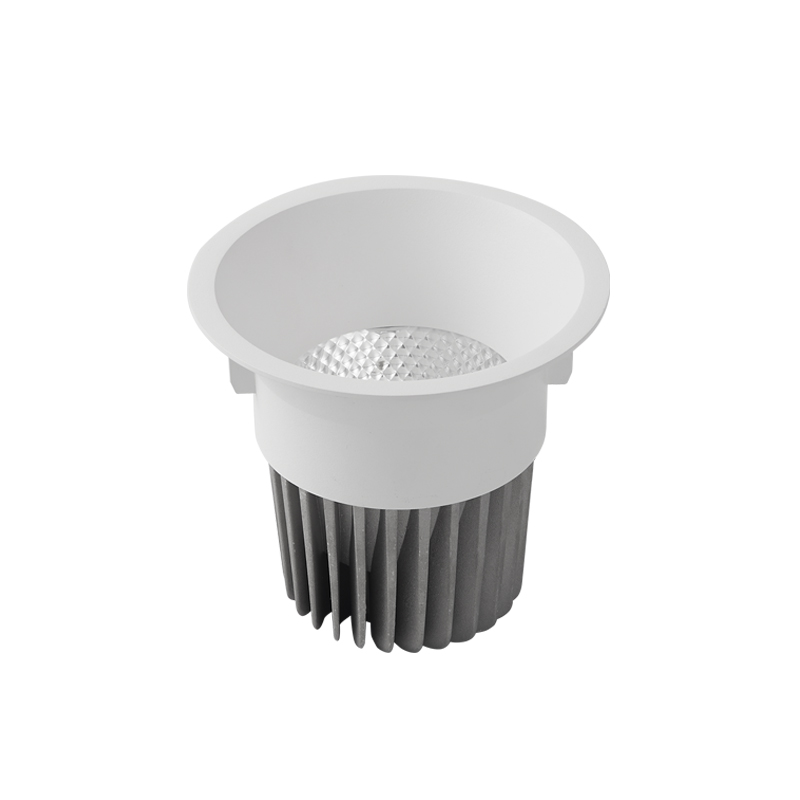

Model D2022
Wattage 7W
Beam 15° /24°/38°
Light source COB LED
Voltage(Constant Current) 175mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|6000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model D2022
Wattage 12W
Beam 15° /24°/38°
Light source COB LED
Voltage(Constant Current) 300mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|6000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model D2022
Wattage 20W
Beam 15° /24°/38°
Light source COB LED
Voltage(Constant Current) 500mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|6000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model D2022
Wattage 30W
Beam 15° /24°/38°
Light source COB LED
Voltage(Constant Current) 750mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|6000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model D2022
Wattage 40W
Beam 15° /24°/38°
Light source COB LED
Voltage(Constant Current) 1000mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|6000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
