XL015C(FULL DIFFUSER LINEAR LIGHT)

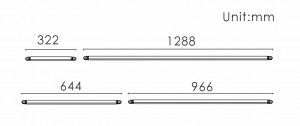

DIMENSIONS
Model XL015C-322
Wattage 8W
Beam 110°
Light source SMD LED
Voltage(Constant Current) 200mA/48V
Cut-out /
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XL015C-644
Wattage 16W
Beam 110°
Light source SMD LED
Voltage(Constant Current) 400mA
Cut-out /
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XL015C-966 Wattage 24W Beam 110° Light source SMD LED Voltage(Constant Current) 600mA Cut-out / Colour temperature 3000K|4000K|5000K (80-90LM/W) IP rating IP20 For indoor use Colour rendering CRI>90 Unified glare rating <19 Power factor ≥0.9 Dimming Non Dinmmable|0-10V|1-10V|DALI Features Lifetime 50,000 hours Material Aluminium alloy die-cast heat sink | PC reflector Warranty 5 Years
Model XL015C-1288 Wattage 32W Beam 110° Light source SMD LED Voltage(Constant Current) 800mA Cut-out / Colour temperature 3000K|4000K|5000K (80-90LM/W) IP rating IP20 For indoor use Colour rendering CRI>90 Unified glare rating <19 Power factor ≥0.9 Dimming Non Dinmmable|0-10V|1-10V|DALI Features Lifetime 50,000 hours Material Aluminium alloy die-cast heat sink | PC reflector Warranty 5 Years
