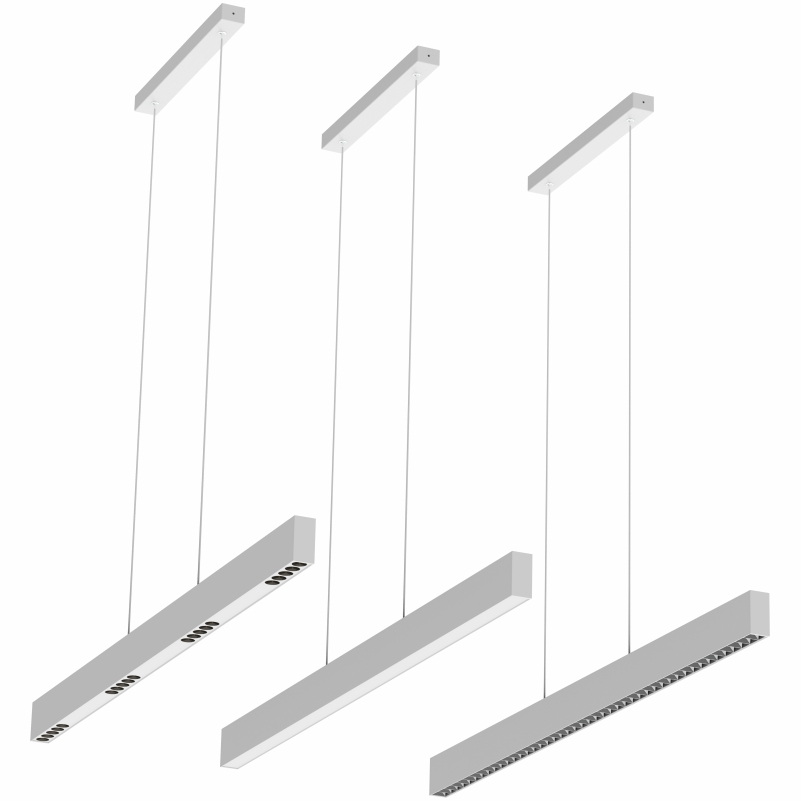

XP010(PENDANT LINEAR LIGHT)

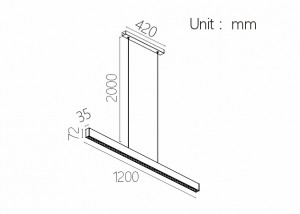

DIMENSIONS

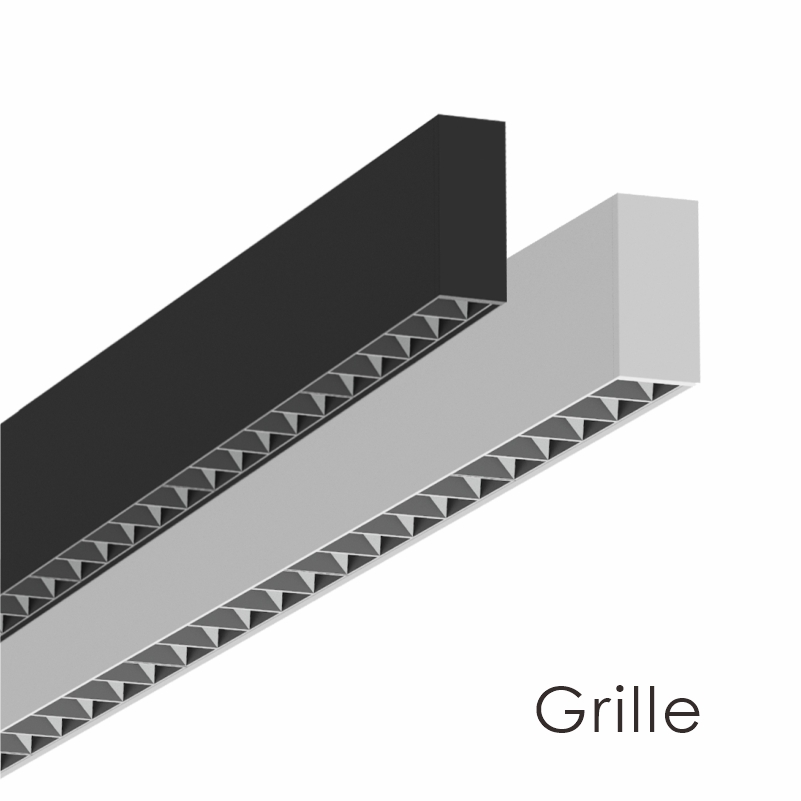

Model XP010A (Grille)
Wattage 38W+14W
Beam 15° /36° /55°
Light source SMD LED
Voltage(Constant Current) 1050mA+350mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years

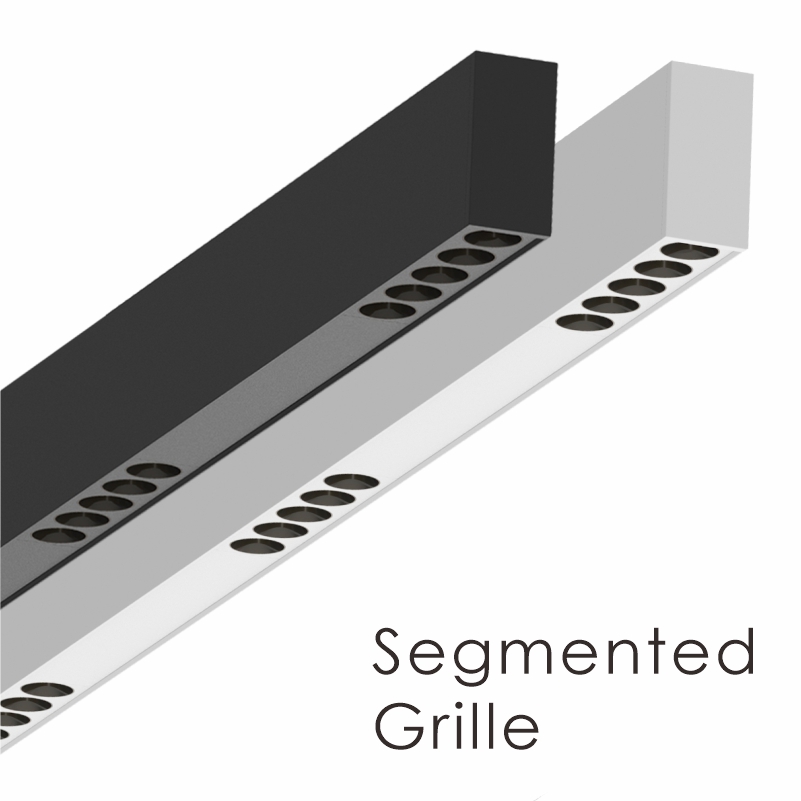

Model XP010B (Segmented Grille)
Wattage 38W+14W
Beam 36°
Light source SMD LED
Voltage(Constant Current) 1050mA+350mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years

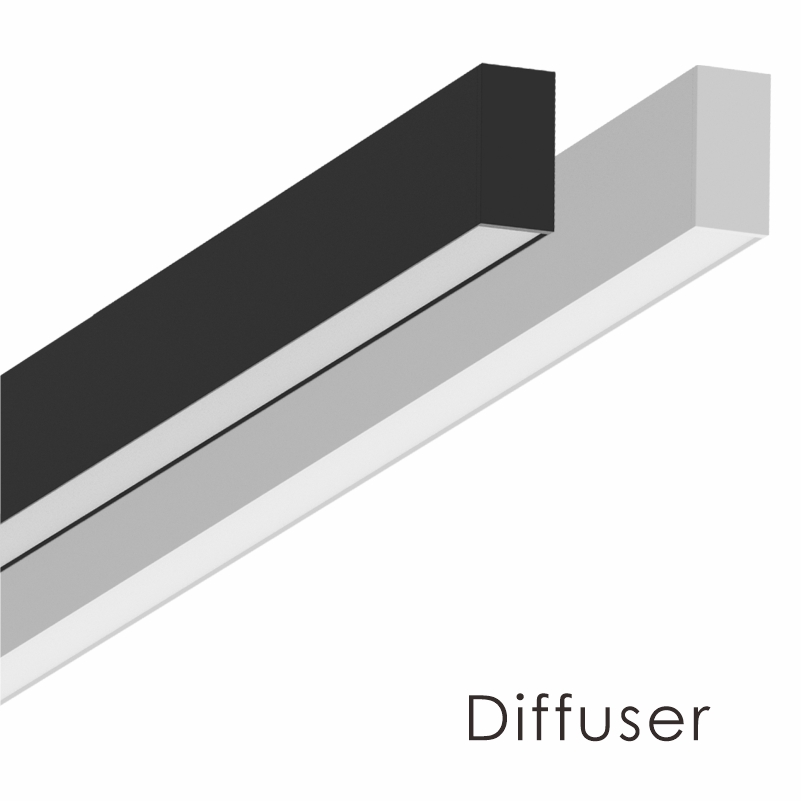

Model XP010C (Diffuser)
Wattage 38W+14W
Beam 15° /36° /55°
Light source SMD LED
Voltage(Constant Current) 950mA+350mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
