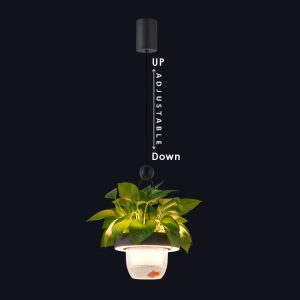

XP012S(GO UP AND DOWN )

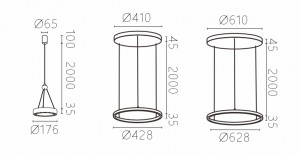

DIMENSIONS
Model XP012S (Circle Ø170mm)
Wattage 12W+5W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 300mA+120mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XP012S (Circle Ø400mm)
Wattage 20W+8W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 500mA+180mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XP012S (Circle Ø600mm)
Wattage 40W+15W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 1000mA+350mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
