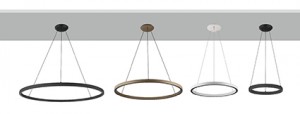

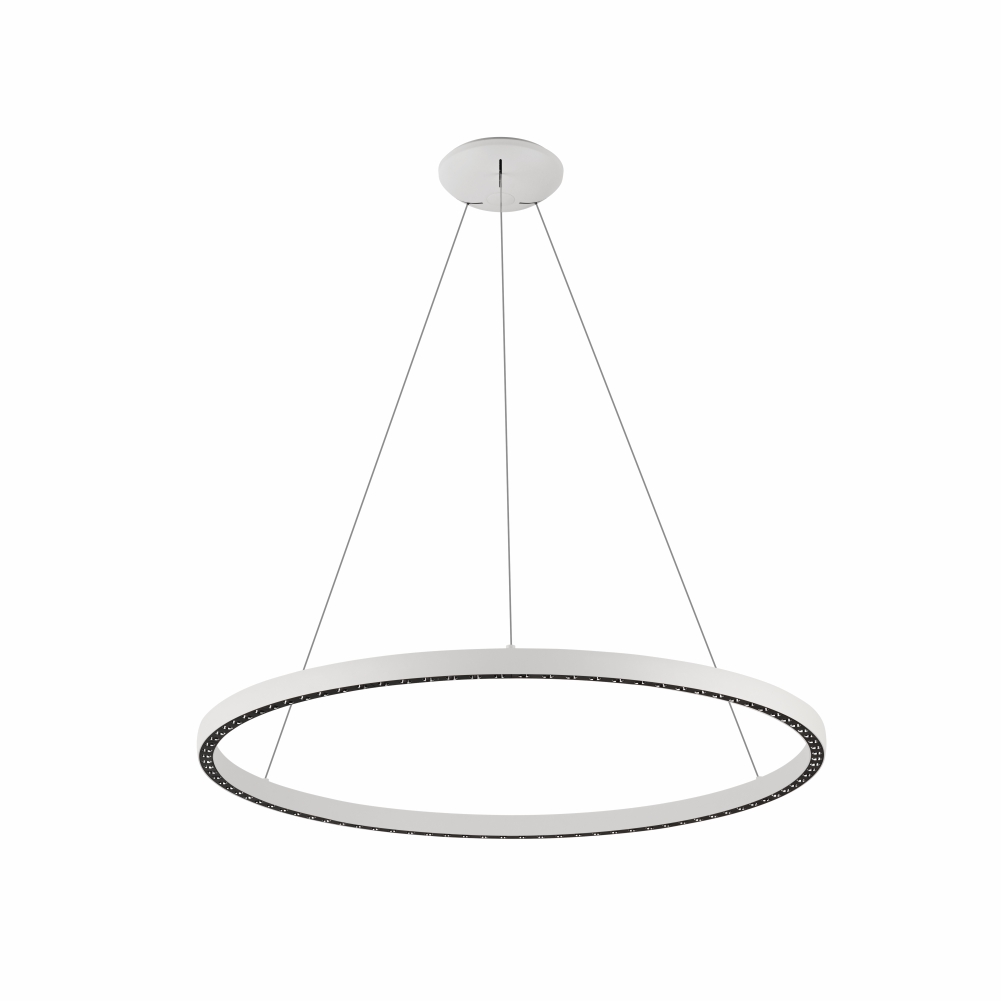

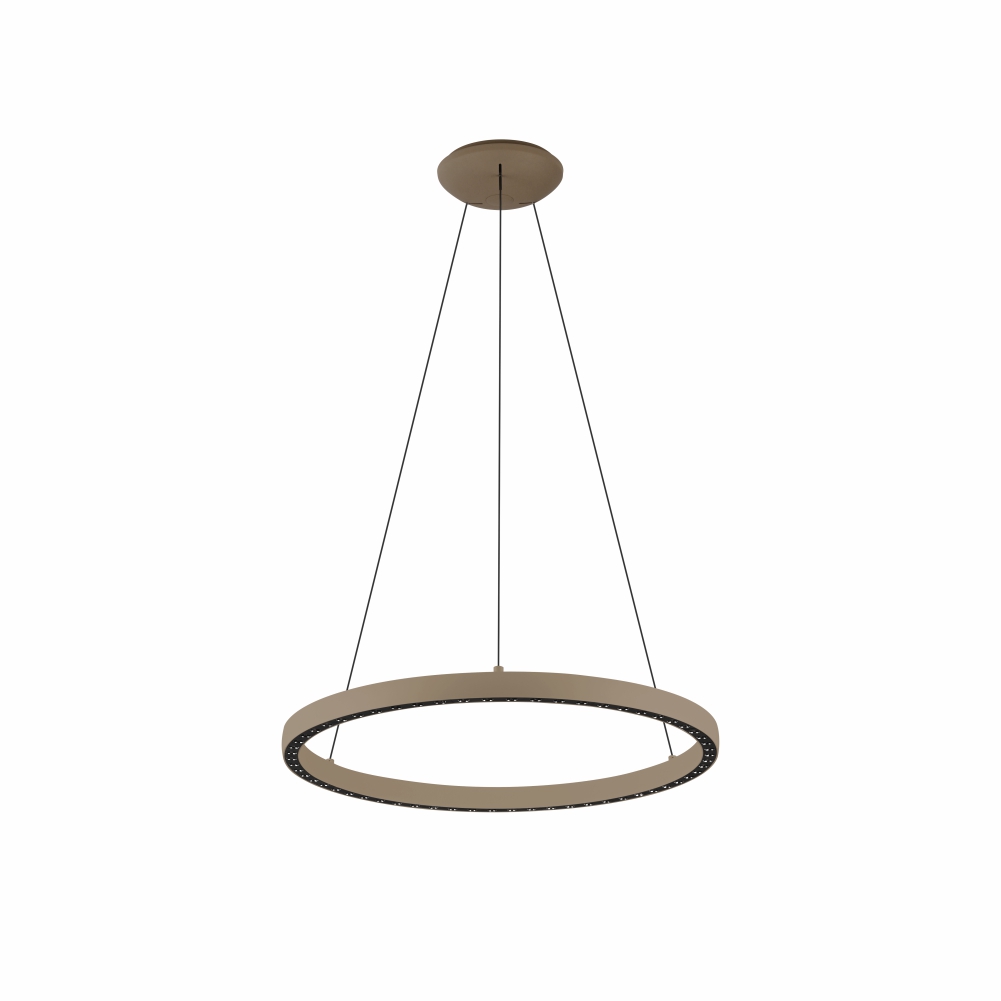

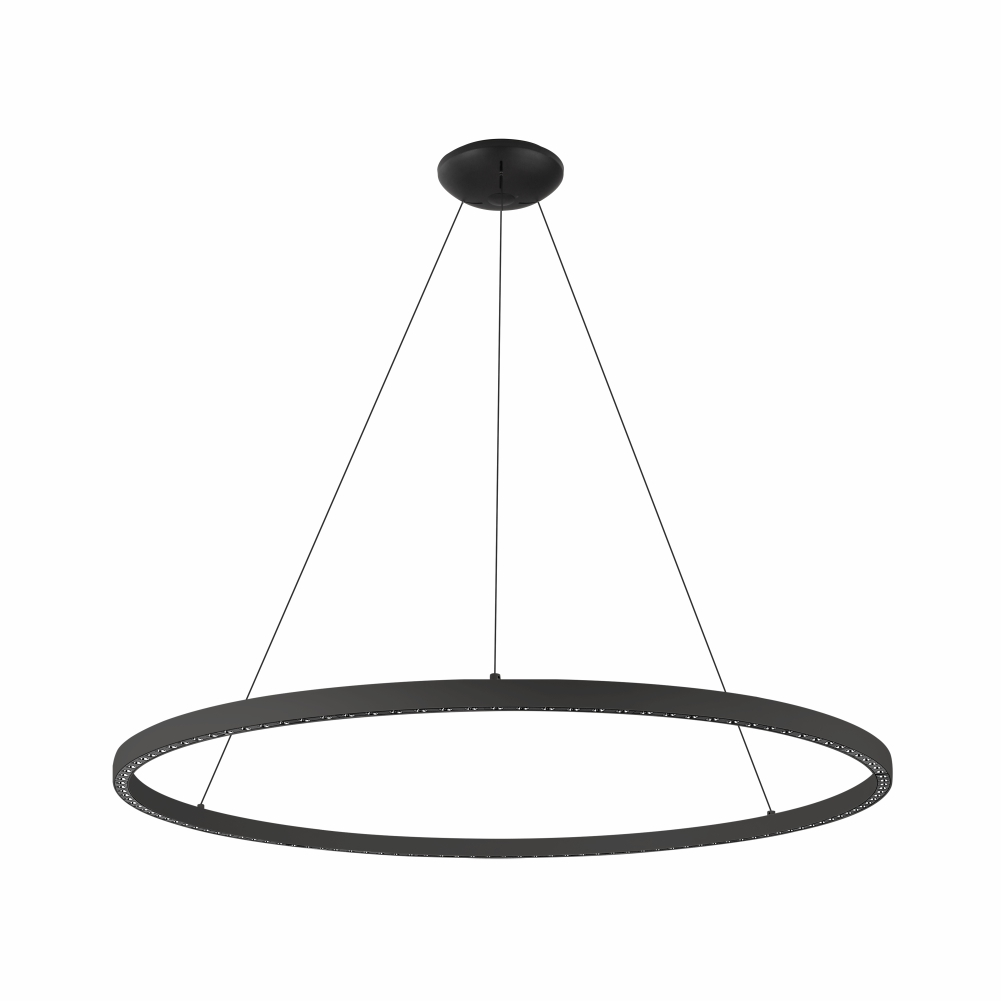

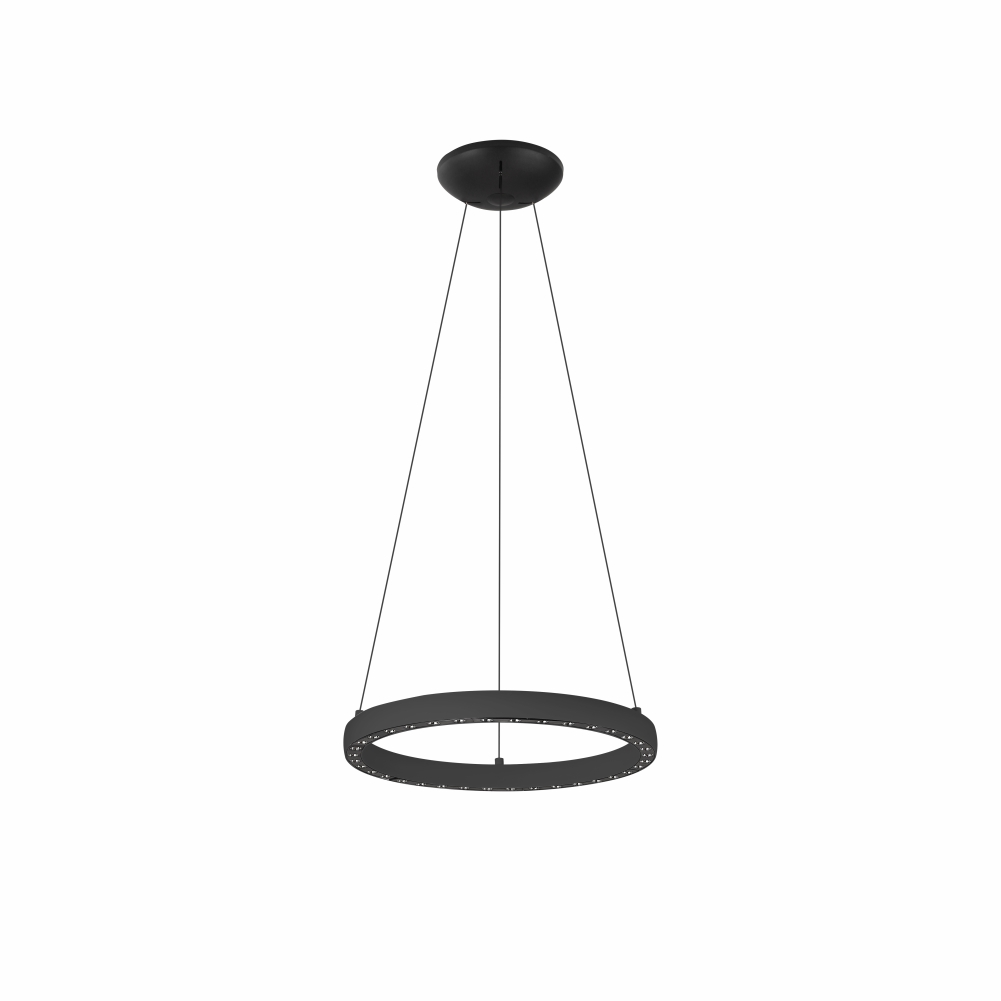

XP012(PENDANT CIRCLE LIGHT)

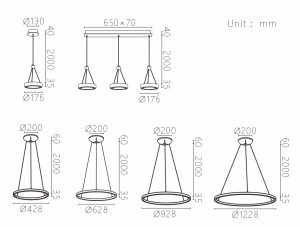

DIMENSIONS

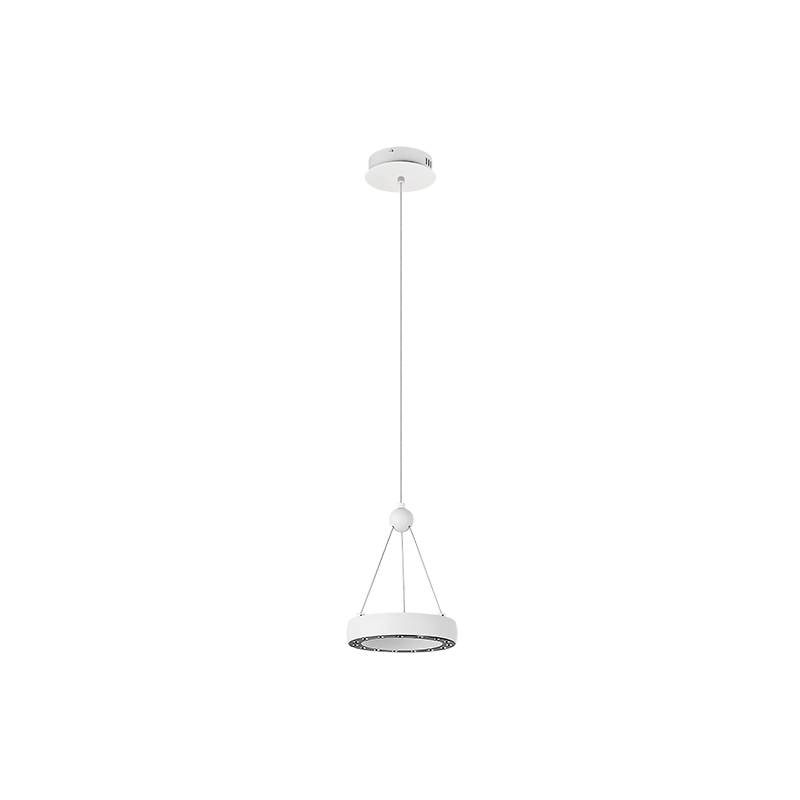

Model XP012 (Circle Ø170mm)
Wattage 12W+5W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 300mA+120mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years

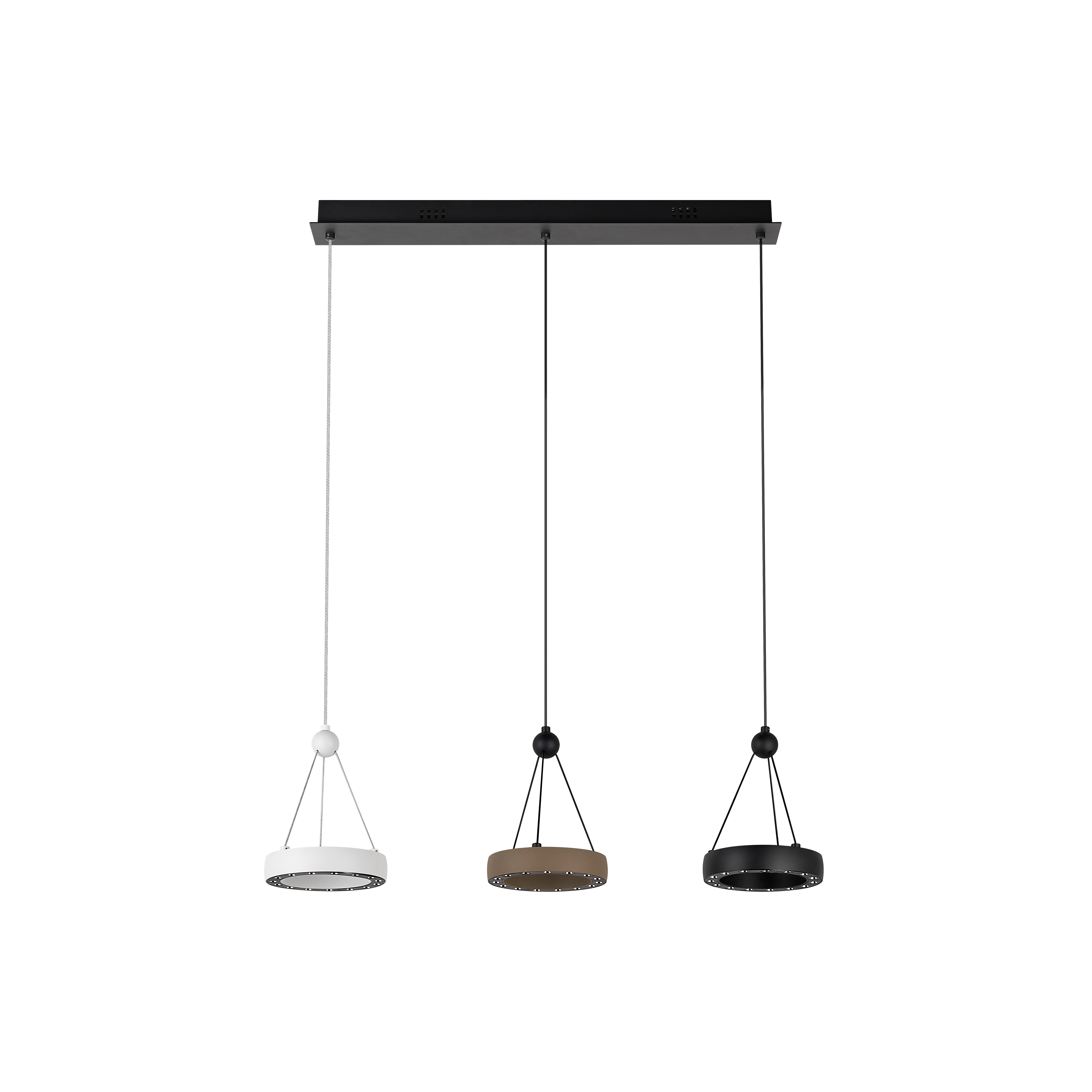

Model XP012 (Circle Ø170mm)
Wattage 3×(12W+5W)（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 3×(300mA+120mA)
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XP012 (Circle Ø400mm)
Wattage 20W+8W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 500mA+180mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XP012 (Circle Ø600mm)
Wattage 40W+15W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 1000mA+350mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XP012 (Circle Ø900mm)
Wattage 60W+20W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 1500mA+500mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
Model XP012 (Circle Ø1200mm)
Wattage 80W+30W（Segmented switch）
Beam 38°
Light source SMD LED
Voltage(Constant Current) 2000mA+750mA
Cut-out Ø25mm
Colour temperature 3000K|4000K|5000K (80-90LM/W)
IP rating IP20 For indoor use
Colour rendering CRI>90
Unified glare rating <19
Power factor ≥0.9
Dimming Non Dinmmable|0-10V|1-10V|DALI
Features Lifetime 50,000 hours
Material Aluminium alloy die-cast
heat sink | PC reflector
Warranty 5 Years
